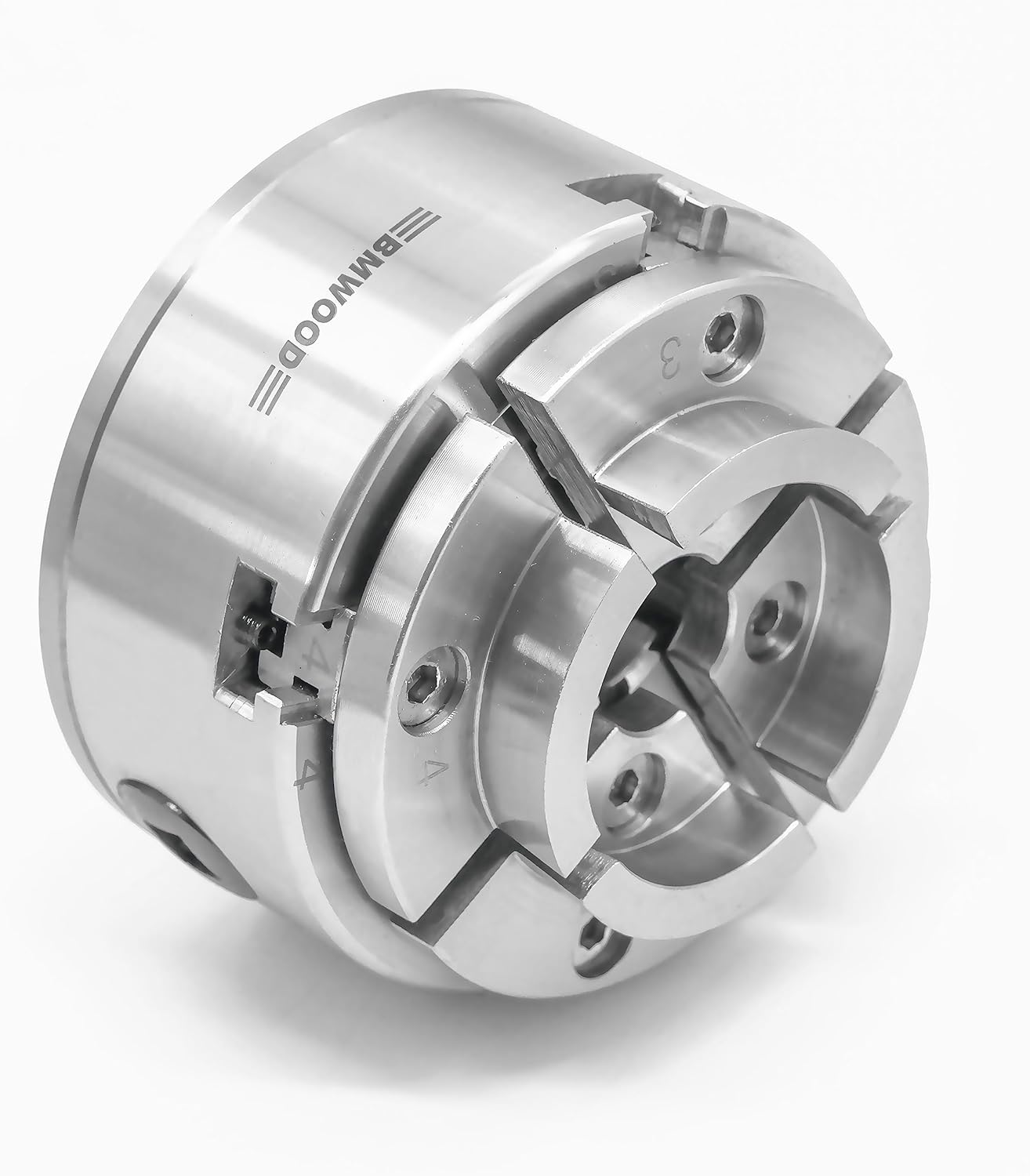

NCK-3.75ZN/S1 Wood Lathe Chuck 3-3/4" Self Centering Chuck Set 1”x 8TPI Direct Thread with locking set screws for reverse turning
|
|
Feature 1: Special Designed Bottom JawJaws for the CK-3.75ZNS1 are compatible with the following chucks: SuperNOVA2, G3 Nova, Robert Sorby Patriot, Record Power SC3, Record Power SC4 |
 |
Feature 2:Two sets locking holes for reversing runningThe design of the locking hole takes into account the main spindle thread guide of different brands of wood lathes in the market, and two sets of optional locking positions to protect the spindle thread from damage. |
 |
Feature 3: Aluminum caseProtective aluminum case makes for easy storage and transportation. |
|
|
No.1 Round jawsIt has a slight dovetail profile. If a matching profile is cut into the recess, the jaws can expand with much greater gripping power. No.1 Round Jaws capacity: Outside Grip Range: 1 1⁄4"–2 1⁄2" Inside Grip Range: 1 3⁄4"–3 1⁄8" |
 |
No.2 Round jawsIt can hold much larger workpieces and has ridges that press into the wood for a better grip. No.2 Round Jaws capacity: Outside Grip Range: 3"–4 1⁄4" Inside Grip Range: 3 1⁄2"–4 7⁄8" |
 |
Pin jawsPin jaws are typically used to expand into a deep recess cut into a bowl-shaped workpiece for initial roughing of the outside and tenon (or foot). Pin jaws capacity: Outside Grip Range: 3⁄8"–1 3⁄4" Inside Grip Range:1"–2 3⁄8” |
 |
Step JawsIt has two outside profiles of different circumferences designed to expand into the recess cut into the workpiece. The surfaces of the jaws have ridges that push into the wood which increases the gripping power. Step Jaws capacity: Outside Grip Range: 3⁄32"– 1 3⁄8" Inside Grip Range: — Upper Step:3⁄4"–2" — Lower Step:1 1⁄2"–2 7⁄8" |
 |
Flat jawsUsed with included grip studs, flat jaws are primarily used to finish the bottom of a bowl-type workpiece (see examples below). The included studs are 13 and 18mm in height and are rubber coated to prevent marring. Use the stud set and configuration that has the most surface contact with the workpiece. Flat Jaws capacity: Flat Jaws Maximum Outside Diameter:5 1⁄8" Flat Jaws Minimum Inside Diameter:2 7⁄8" |
 |
Woodworm ScrewThe woodworm screw is typically used with the No.1 round jaw set for holding small items. Refer to the illustration in the manual for closing the round jaws around the base of the screw. |
| Brand | BMWOOD |
| Material | Aluminum |
| Compatible Devices | Lathe |
| Thread Size | 1"X8TPI |
| Included Components | 3-3/4" Chuck with 5 Sets 4-jaws in Aluminum Case |
- Jaws are compatible with the following chucks: Super NOVA2, G3 Nova, Robert Sorby Patriot, Record Power SC3, Record Power SC4.
- Scroll chuck perfect for holding bowls, spindles, and other unwieldy lathe projects.
- The tightening mechanism provides additional grip strength to the workpiece.
- Small round jaw with outside grip range from 1-1/4 to 2-1/2" and inside grip range from 1-3/4 to 3-1/8" ; Big round jaw with outside grip range from 3 to 4-1/4" and inside grip range from 3-1/2 to 4-7/8" ; Pin jaw with outside grip range from 3/8 to 1-3/4" and inside grip range from 1 to 2-3/8"; Step jaw with outside grip range from 3/32 to 1-3/8" and inside grip range from 3/4 to 2" at upper step and 1-1/2 to 2-7/8" at lower step; Flat Jaws with max outside dia. 5-1/8" and min. inside 2-7/8".
-
1” x 8 TPI thread is compatibile with the majority of wood lathes on the market.
